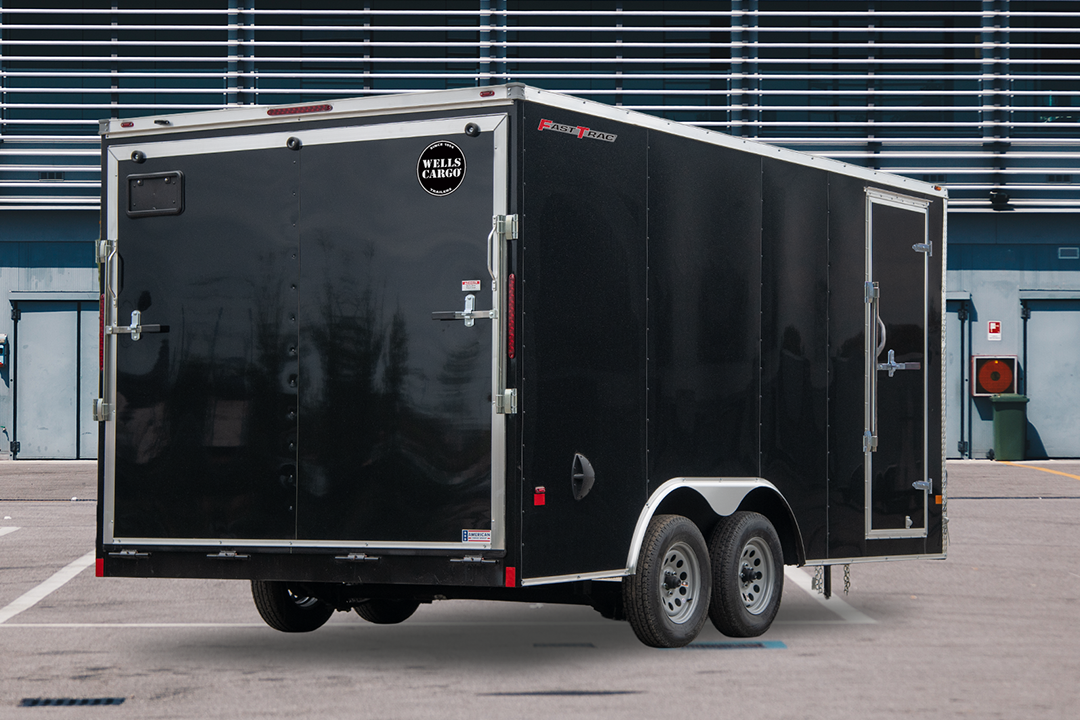

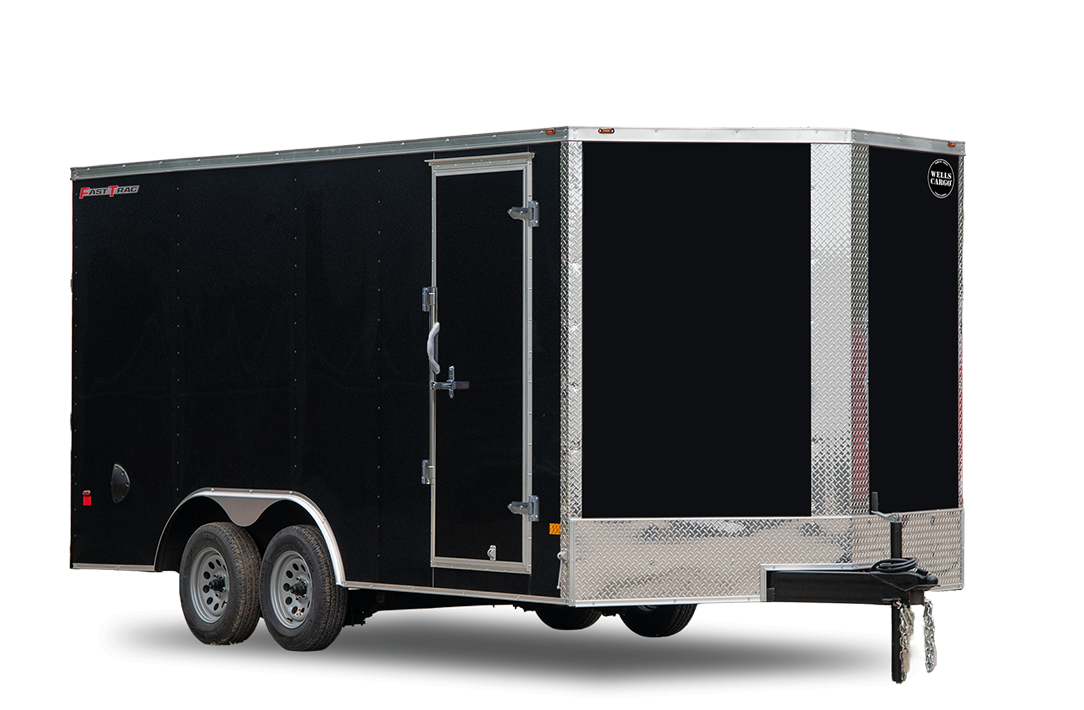

FastTrac 8.5' Wide
VALUE DRIVEN WITH A SPIRIT THAT'S BORN TO HAUL!
The FastTrac® 8.5' Wide brings a whole new level of value to the light-duty recreational hauler. A balanced combination of versatility and affordability, the FastTrac® 8.5' Wide delivers on all fronts. From its unpretentious styling to its uncompromising safety, only Wells Cargo® could pack so much value into an entry-level trailer. No other cargo trailer in its class offers attributes like a bull nose profile, rugged steel frame, platform lowering drop axles, 16" starbright stoneguard, and 3/4" PlexCoreTM high performance interior flooring. There's no doubt about it, the FastTrac® 8.5' Wide is a quick study in getting more bang for your buck!
Model shown features the popular Deluxe Package that includes .030 Exterior Metal, 3/8" PlexCore High Performance SIdewalls, and 5000 lb. Floor D-Rings.
Features

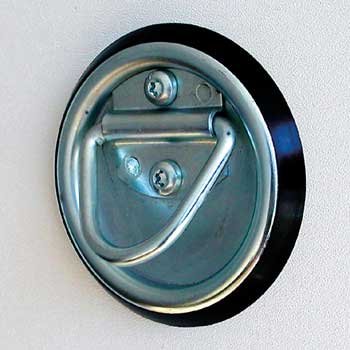

1,000 lb. Surface Wall Mounted Rope-Ring (4)
Exclusive Bull Nose Profile
12v LED Slim Line Tail Lights
- Entire Chassis Undercoated
- 16" Ramp Extension
- 500 lb. D-Ring Tie-Downs (4)
- 16" OC Tube Vertical Posts
- 1-Year Limited Warranty
- 24" OC Tube Roof Bows
- 2" x 6" Tube Main Rails
- Spring Axles with 4" Drop
- Silver Spoke Wheels
- 15" Radial Tires
- Electric Brakes with Breakaway Kit
- E-Z Lube® Hubs
- 16" OC Crossmembers
- Smooth Aluminum Fenderettes
- Flow-Thru Sidewall Vents
- 3/8" PlexCore High-Performance Interior Sidewalls
- 16" Starbright Stoneguard
- Rear Ramp Door with Spring Assist

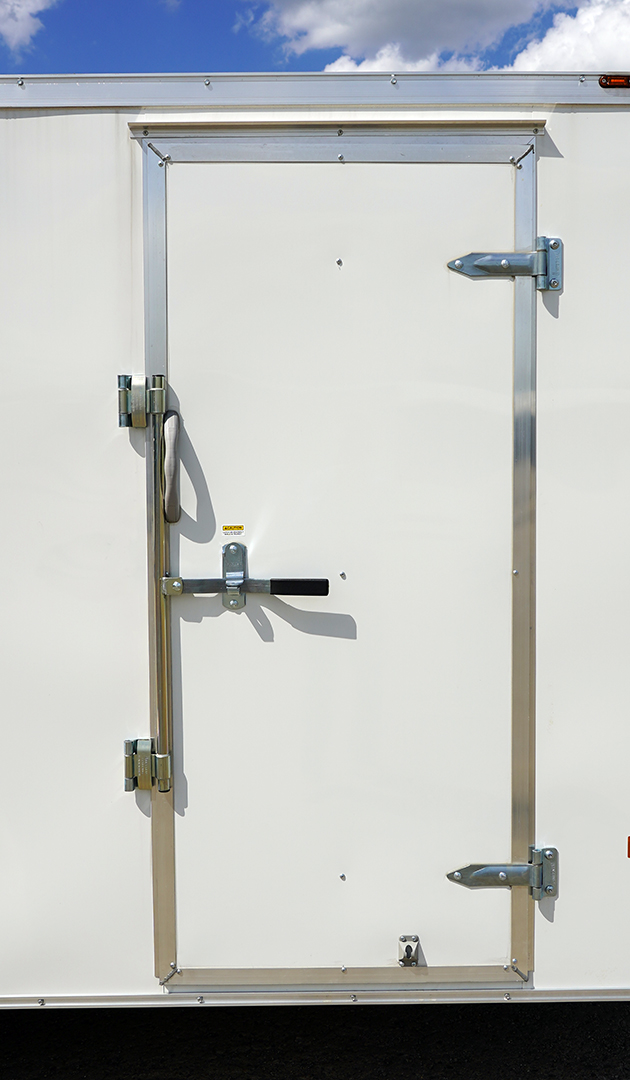

- 32" Side Entry Door with Bar Lock

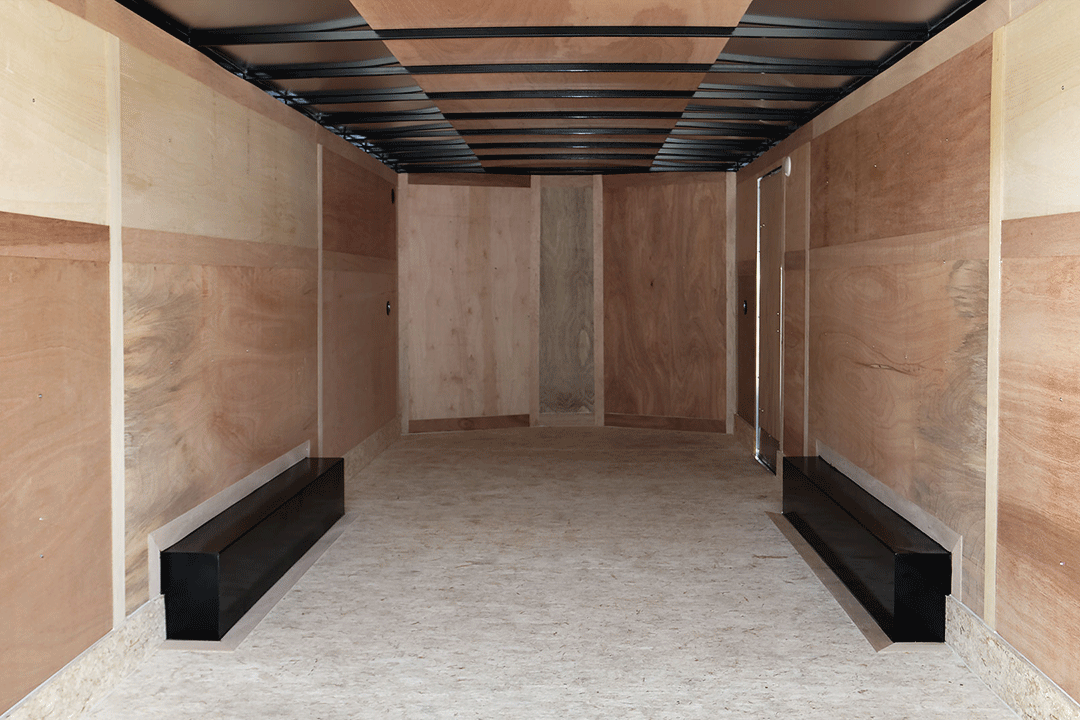

- 3/4" PlexCore High-Performance Interior Decking
- 12v LED Exterior Lighting
- 1-Piece Aluminum Roof
- Semi-Screwless .080 ACP Exterior (Aluminum Composite Panels)
Standard Features, Specifications and Available Options subject to change without notice.
Gallery
Specifications
| MODEL | FT8516T2 | FT8520T2 | FT8524T2 |
| BODY LENGTH | 18'0" | 22'0" | 26'0" |
| BODY WIDTH | 8'4" | 8'4" | 8'4" |
| OVERALL LENGTH | 20'0" | 24'0" | 28'0" |
| OVERALL WIDTH | 8'6" | 8'6" | 8'6" |
| OVERALL HEIGHT | 8'3" | 8'3" | 8'3" |
| INTERIOR LENGTH | 17'9" | 21'9" | 25'9" |
| INTERIOR WIDTH | 8'1" | 8'1" | 8'1" |
| INTERIOR HEIGHT | 6'6" | 6'6" | 6'6" |
| WIDTH BETWEEN WHEEL WELLS | 83" | 83" | 83" |
| PLATFORM HEIGHT | 20" | 20" | 20" |
| AXLE QUANTITY | Tandem | Tandem | Tandem |
| TOTAL AXLE CAPACITY | 7,000 lbs. | 7,000 lbs. | 7,000 lbs. |
| BRAKES WITH BREAKAWAY KIT | Electric Drum | Electric Drum | Electric Drum |
| RADIAL TIRE SIZE | ST205/75R15 | ST205/75R15 | ST205/75R15 |
| TIRE LOAD RANGE | C | C | C |
| HITCH BALL SIZE | 2-5/16" | 2-5/16" | 2-5/16" |
| HITCH HEIGHT TO TOP OF BALL | 18" | 18" | 18" |
| HITCH WEIGHT (% OF CURB WEIGHT) | 10% to 15% | 10% to 15% | 10% to 15% |
| CURB WEIGHT (APPROXIMATE) | 2,485 lbs. | 2,975 lbs. | 3,465 lbs. |
| GVWR | 7,000 lbs. | 7,000 lbs. | 7,000 lbs. |
| PAYLOAD CAPACITY (APPROXIMATE) | 4,515 lbs. | 4,025 lbs. | 3,535 lbs. |
| REAR RAMP DOOR OPENING (W x H) | 94" x 72" | 94" x 72" | 94" x 72" |
| 12v TRAILER END CONNECTOR | 7-Way | 7-Way | 7-Way |
Standard Features, Specifications and Available Options subject to change without notice.
Popular Options
No Options Available
Standard Features, Specifications and Available Options subject to change without notice.
