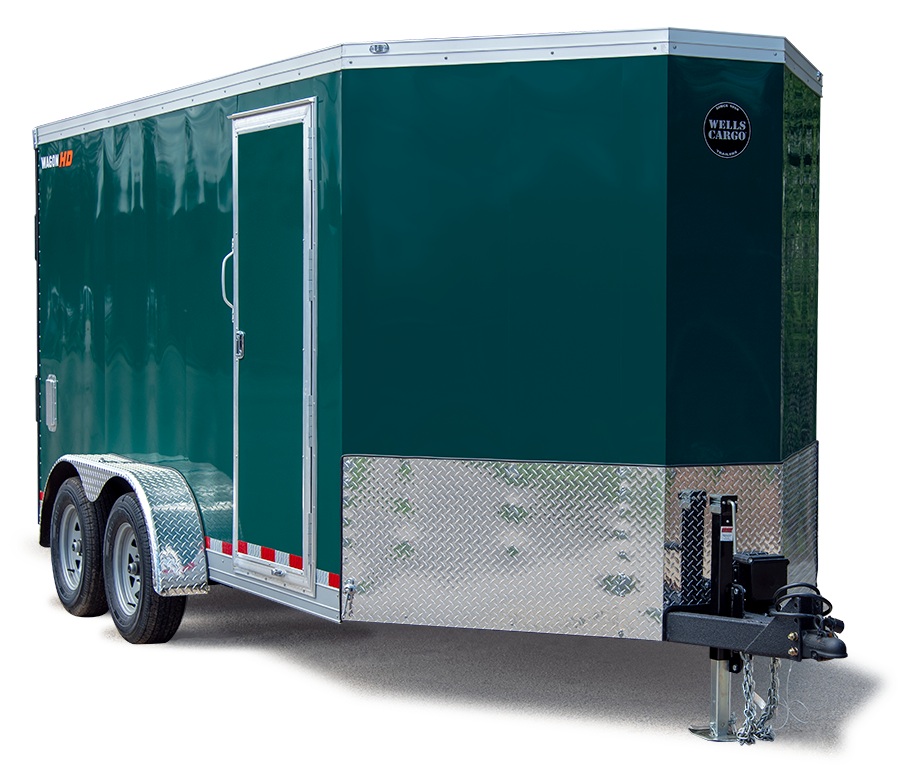

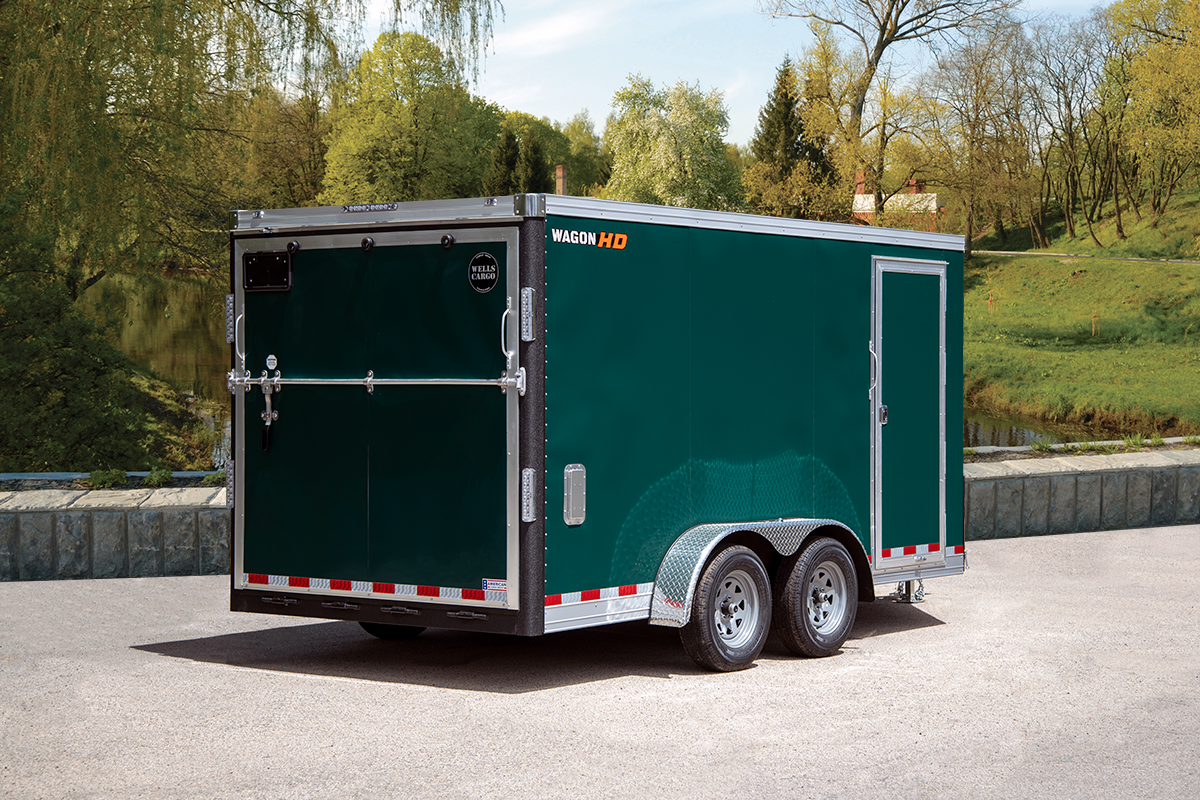

Wagon HD V-Nose (7' wide)
The SHAPE of Ultimate Versatility!
The Wells Cargo WAGON HD V-Front is the new shape of durability. The aggressive bullnose design makes a commanding statement while improving towability and adding to the trailer’s interior cubic capacity. Whatever the challenge at hand, you can rely on the strength, backbone, and capability of the new WAGON HD series. Sure, there are plenty of other trailer choices out there, but when you need the best-built trailer for the toughest jobs, there’s only one real choice – the WAGON HD!
Features

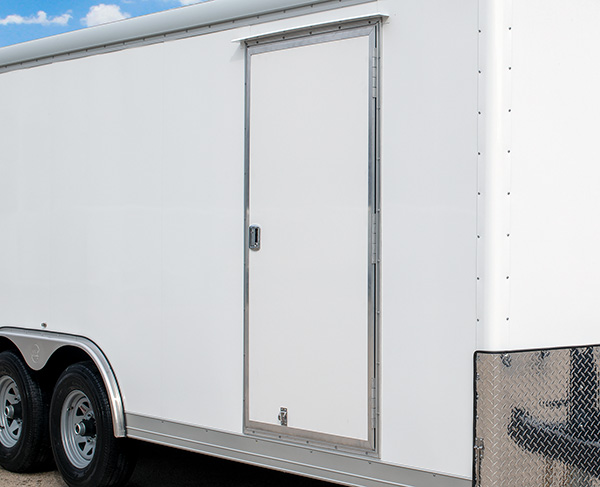

36"W Side Entry Door with Flush Lock & Dead Bolt (1-1/2" Core)

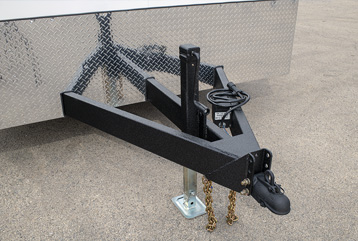

Square Tube 8K Dropleg Sidewide Jack with Footplate (Bolt-On/Replaceable)
5,000 lb. Floor Non-Swivel D-Rings

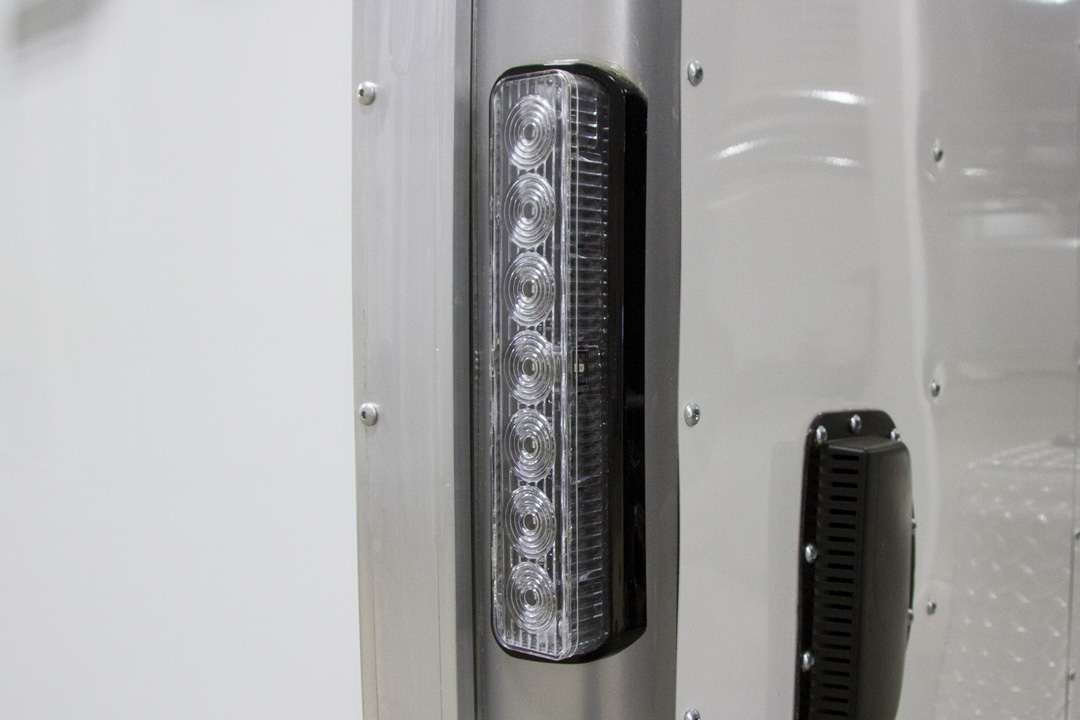

- LED Wraparound Tail Lights
- 16" OC Tube Vertical Posts

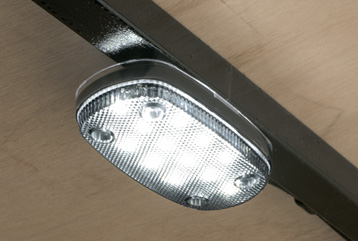

- 12V High Output LED Dome Lights (800 lumens)
- Rear ID Bar with Built-In Loading Light
- All Aluminum "Anti-Rack" Cam Lock with Stainless Steel Hasp
- 4-1/4"H Extruded Aluminum Bottom Trim
- 4-Wheel Electric Brakes with Breakaway Battery
- Dexter® Torsion Axles with E-Z Lube® Hubs
- Adjustable Height 2-5/16" Wallace Forge® Cast Coupler (Made in the USA)
- ArmorTech on A-Frame, Rear Hoop and Interior Wheel Boxes
- Dust-Proof Sidewalls
- 16" OC C-Channel Crossmembers (Full Height of Main Rail)
- 16" OC Tube Roof Structure
- Goodyear® Endurance Radial Tires
- 15" Radial Tires
- Safety Chains with Hook and Latch

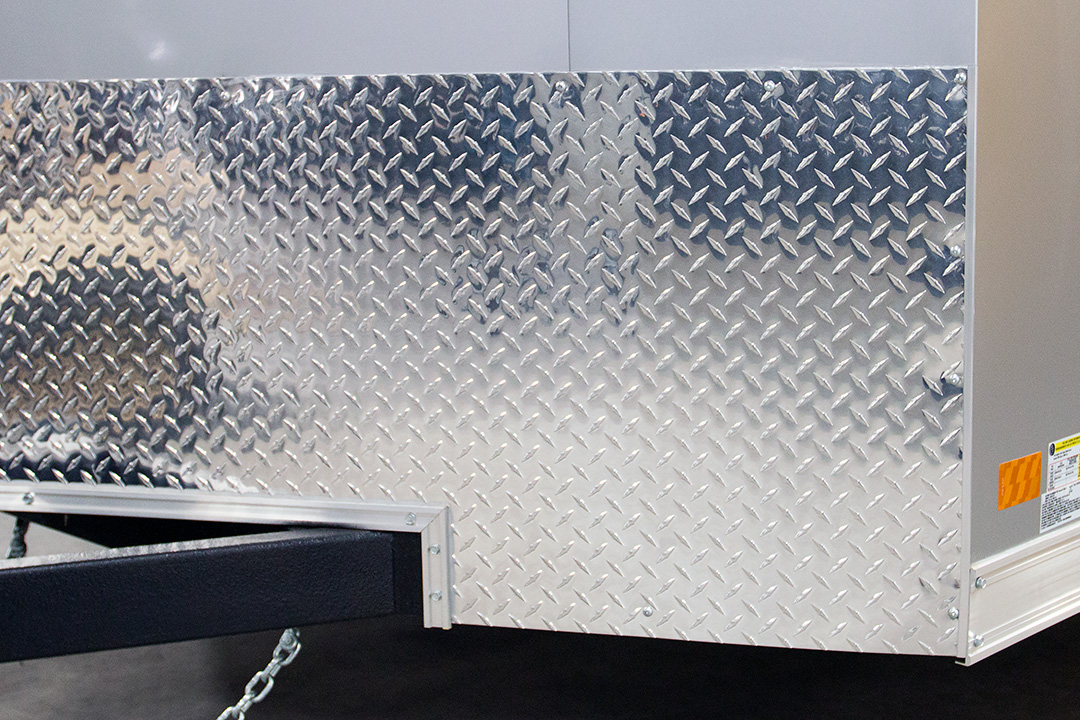

- 24" ATP Stoneguard
- 12V LED Dome Light with Wall Switch

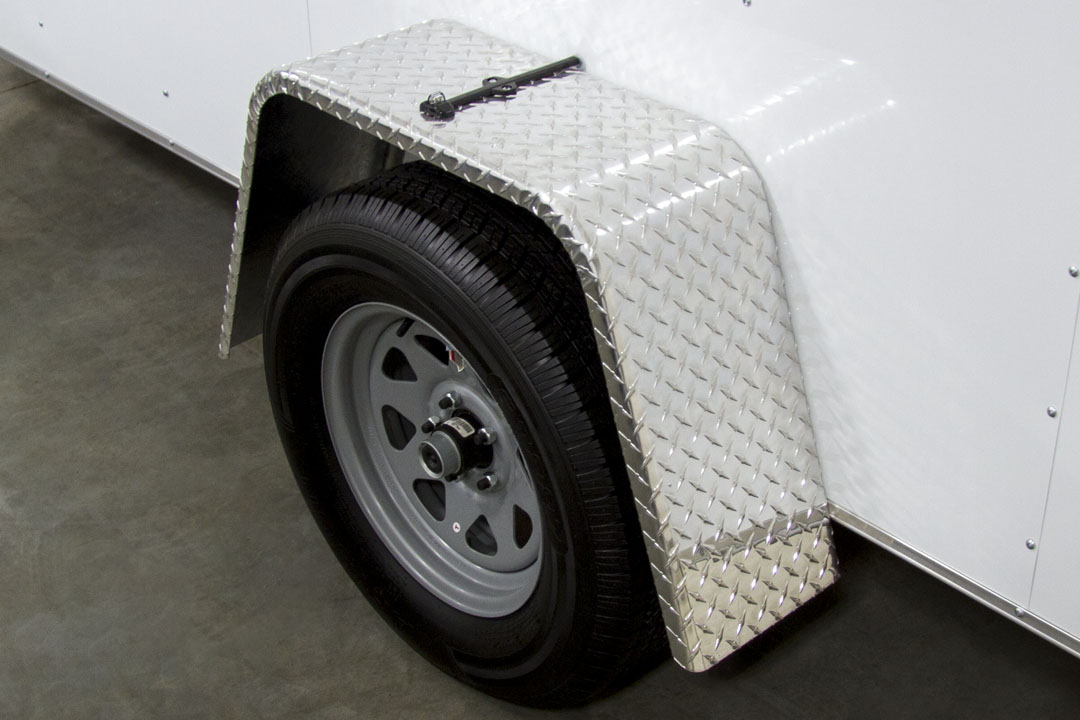

- ATP Fenders
- 3-Year Limited Warranty
- Spring-Assisted Rear Ramp Door with Extension
- 36" V-Front with Bright Anodized Aluminum on Nose
- Full Height Steel C-Channel Crossmembers
- SAE Truck/Trailer Color Coded Wire
- Corrosion Preventive Compound (CPC)
- 3/8" PlexCore High-Performance Interior Sidewalls
- Tubular Steel Main Rails
- Seamless Aluminum Roof
- 3/4" PlexCore High-Performance Interior Decking
- 12v LED Exterior Lighting
- Bonded .080 ACP Exterior (Aluminum Composite Panels)
Standard Features, Specifications and Available Options subject to change without notice.
Gallery
Specifications
| MODEL | WVHD712T2 | WVHD714T2 | WVHD716T2 | WVHD716T3 | WVHD720T3 |
|---|---|---|---|---|---|
| BODY LENGTH | 15'0" | 17'0" | 19'0" | 19'0" | 23'0" |
| BODY WIDTH | 7'0" | 7'0" | 7'0" | 7'0" | 7'0" |
| OVERALL LENGTH | 17'4" | 19'4" | 21'4" | 21'4" | 25'4" |
| OVERALL WIDTH | 8'6" | 8'6" | 8'6" | 8'6" | 8'6" |
| OVERALL HEIGHT | 8'4" | 8'4" | 8'4" | 8'6" | 8'6" |
| INTERIOR LENGTH (Including V) | 14'9" | 16'9" | 18'9" | 18'9" | 22'9" |
| INTERIOR WIDTH | 6'9" | 6'9" | 6'9" | 6'9" | 6'9" |
| INTERIOR HEIGHT | 6'6" | 6'0" | 6'0" | 6'0" | 6'0" |
| PLATFORM HEIGHT | 19" | 19" | 19" | 21" | 21" |
| AXLE: QUANTITY | Tandem | Tandem | Tandem | Tandem | Tandem |
| AXLE: TYPE | 10-Degree Up | 10-Degree Up | 10-Degree Up | 10-Degree Up | 10-Degree Up |
| BRAKES | Yes | Yes | Yes | Yes | Yes |
| SUSPENSION | Dexter Torflex® | Dexter Torflex® | Dexter Torflex® | Dexter Torflex® | Dexter Torflex® |
| TIRE SIZE | 15" | 15" | 15" | 15" | 15" |
| LOAD RANGE | D | D | D | E | E |
| WHEEL BOLT | 5-Bolt | 5-Bolt | 5-Bolt | 6-Bolt | 6-Bolt |
| HITCH BALL SIZE | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" |
| HITCH TO TOP OF BALL | 17" to 21" | 17" to 21" | 17" to 21" | 17" to 21" | 17" to 21" |
| HITCH WEIGHT (LB.) | 10-15% | 10-15% | 10-15% | 10-15% | 10-15% |
| CURB WEIGHT (Approximate) | 2,145 lbs. | 2,265 lbs. | 2,385 lbs. | 2,785 lbs. | 3,025 lbs. |
| GVWR | 7,000 lbs. | 7,000 lbs. | 7,000 lbs. | 9,990 lbs. | 9,990 lbs. |
| PAYLOAD CAPACITY (Approximate) | 4,855 lbs. | 4,735 lbs. | 4,615 lbs. | 7,205 lbs. | 6,985 lbs. |
| REAR DOOR STYLE | Double Doors | Double Doors | Double Doors | Double Doors | Double Doors |
| DOOR: WIDTH | 76" | 76" | 76" | 76" | 76" |
| DOOR: HEIGHT | 72" | 72" | 72" | 72" | 72" |
| 12V TRAILER PLUG | 7-way | 7-way | 7-way | 7-way | 7-way |
Standard Features, Specifications and Available Options subject to change without notice.
Popular Options
3/4" Pressure Treated Plywood Floor
20" Fold-Up Step
Adjustable Coupler
ATP Wall Guard
Custom Painting, Lettering and Graphics
Duplex Wall Receptacle(s)
E-Track
Floor Mounted D-Ring Tie Downs
Fluorescent Lighting
Gray/Black Rubber Coin Floor Covering
Overhead Cabinets
Roof Rack
Roof Vent with Exhaust Fan
Scorpion Spray-On Protective Liner
Workbench
ATP Floor Covering
Standard Features, Specifications and Available Options subject to change without notice.
