Wagon HD (7' wide)
At Home or On The Job
Day after day, job after job, year after year, the Wagon HD proves that it's built to go the distance... and then some! Go ahead. Put us to the test. We're confident you won't find a longer lasting trailer than a Wells Cargo Wagon HD. You can achieve that kind of durability when you focus on building a better trailer, rather than cutting corners. Everyday is an ongoing challenge to improve our manufacturing processes assuring you get the most trailer for your hard earned dollar. We've been doing it for 65 years and we're not about to change now. After all, striving for quality is a hard habit to break.
Features
36"W Side Entry Door with Flush Lock & Dead Bolt (1-1/2" Core)
Square Tube 8K Dropleg Sidewide Jack with Footplate (Bolt-On/Replaceable)
12V High Output LED Dome Lights (800 lumens)
- Safety Chains with Hook and Latch
- ArmorTech on A-Frame, Rear Hoop and Interior Wheel Boxes
- Rear ID Bar with Built-In Loading Light
- LED PC/PC2 Rated Clear Lens Clearance/Marker Lights
- LED Wraparound Tail Lights with Built-In Side Marker Light (Wells Cargo Exclusive)
- All Aluminum "Anti-Rack" Cam Lock with Stainless Steel Hasp
- 4-1/4"H Extruded Aluminum Bottom Trim
- .080 Extruded Aluminum Roof Cove with Drip Rail
- Radius Roof with Silver Fiberglass End Caps — Front & Rear
- 4-Wheel Electric Brakes with Breakaway Battery
- Dexter® Torsion Axles with E-Z Lube® Hubs
- Adjustable Height 2-5/16" Wallace Forge® Cast Coupler (Made in the USA)
- Dust-Proof Sidewalls
- Entire Chassis Undercoated
- 16" OC C-Channel Crossmembers (Full Height of Main Rail)
- Steel Tube Main Rails
- 16" OC Tube Roof Bows
- 16" OC Tube Vertical Posts
- Goodyear® Endurance Radial Tires

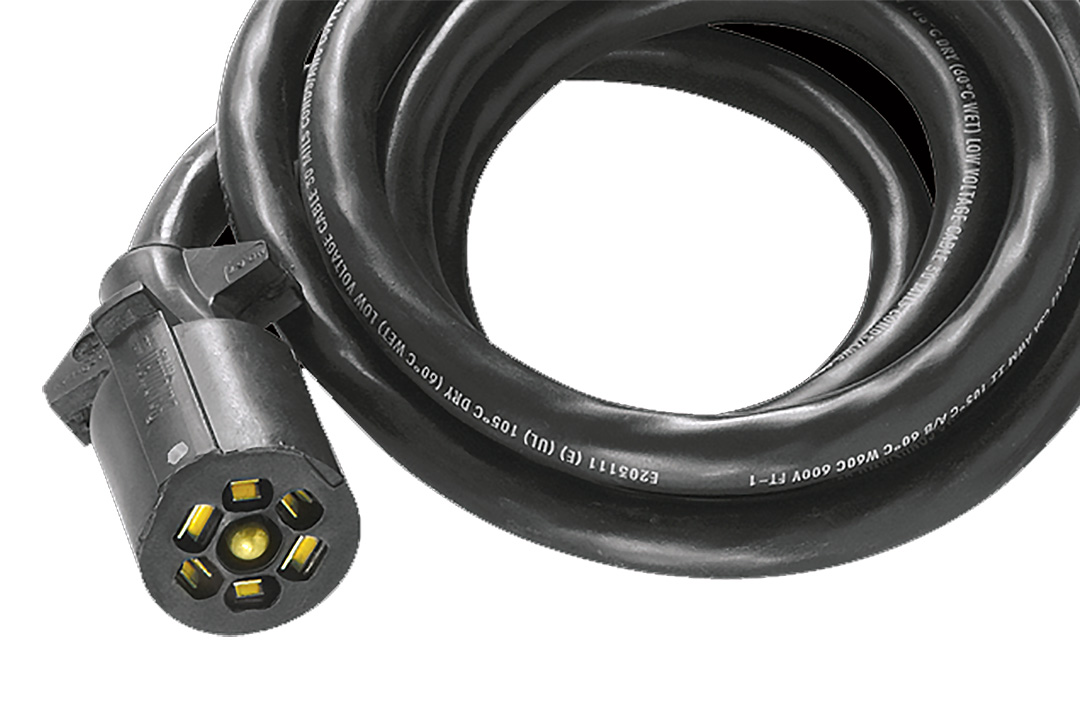

- 7-Way 12V End Connector
- 3-Year Limited Warranty
- Flow-Thru Sidewall Vents

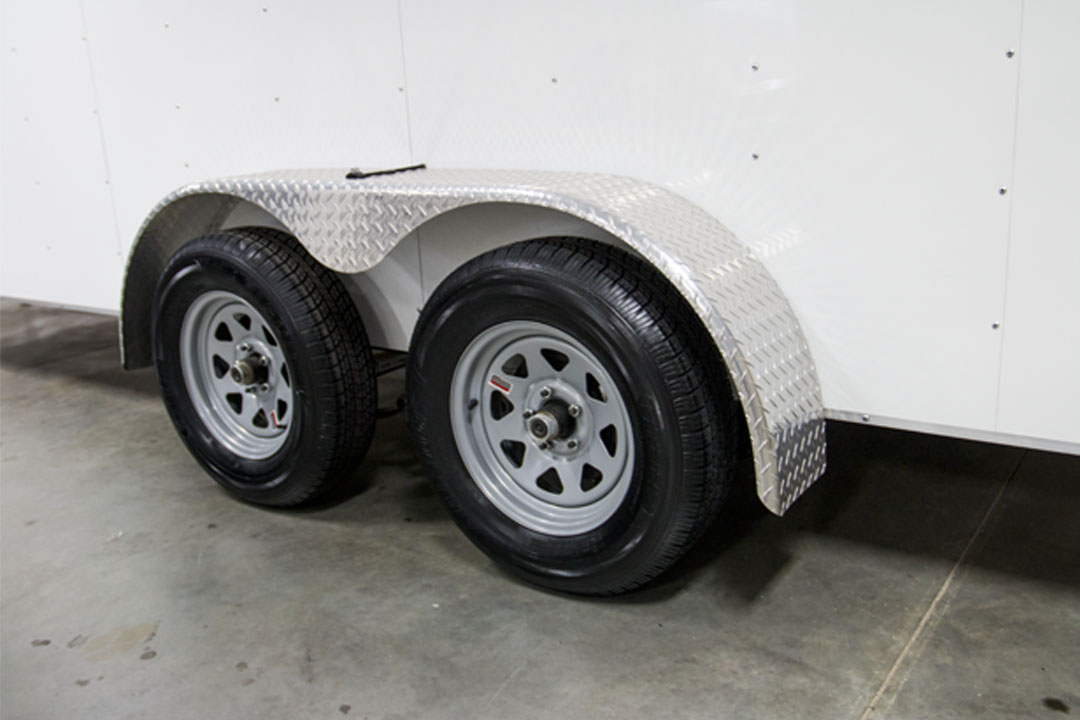

- ATP Fenders
- 3/8" PlexCore High-Performance Interior Sidewalls
- 24" ATP Stoneguard

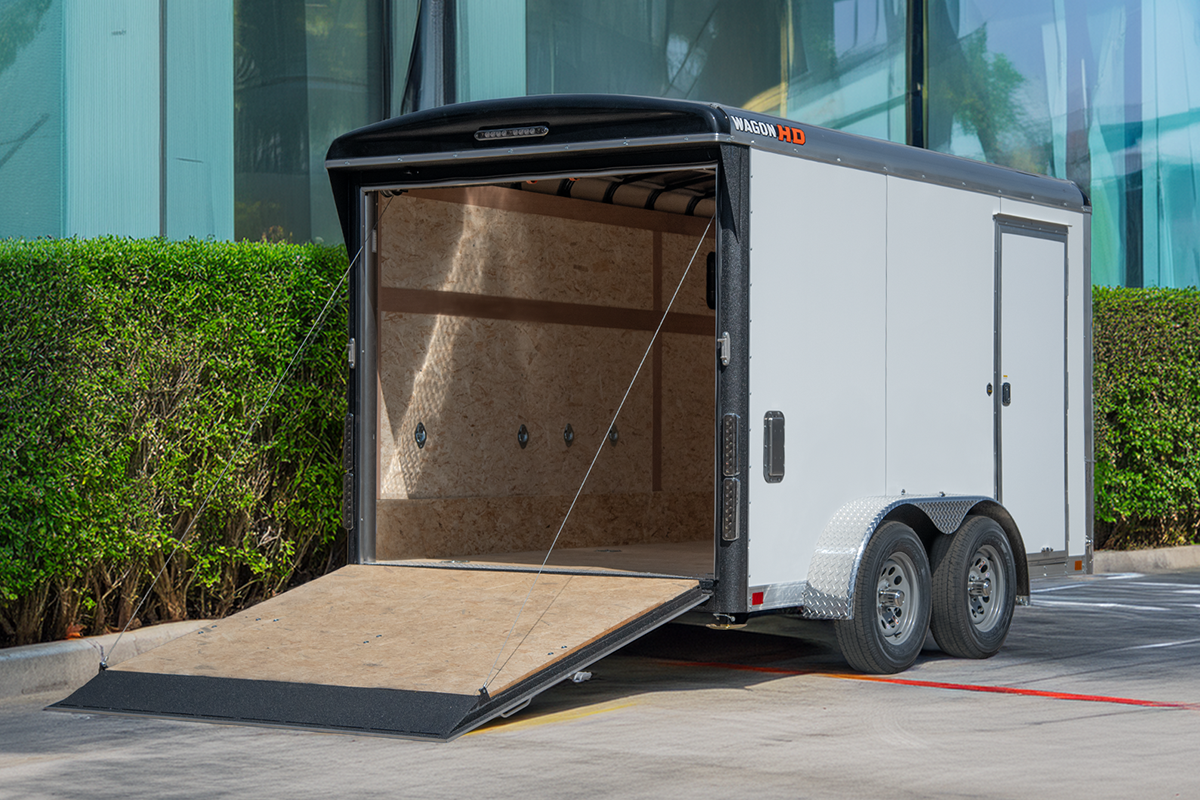

- Rear Ramp Door with Spring Assist
- 3/4" PlexCore High-Performance Interior Decking
- 1-Piece Aluminum Roof
- Bonded .080 ACP Exterior (Aluminum Composite Panels)
Standard Features, Specifications and Available Options subject to change without notice.
Gallery
Specifications
| MODEL | WHD712T2 | WHD714T2 | WHD716T2 | WHD716T3 | WHD720T3 |
|---|---|---|---|---|---|
| BODY LENGTH | 12'0" | 14'0" | 16'0" | 17'0" | 20'0" |
| BODY WIDTH | 7'0" | 7'0" | 7'0" | 7'0" | 7'0" |
| OVERALL LENGTH | 16'4" | 18'4" | 20'4" | 20'4" | 24'4" |
| OVERALL WIDTH | 8'6" | 8'6" | 8'6" | 8'6" | 8'6" |
| OVERALL HEIGHT | 8'2" | 8'2" | 8'2" | 8'4" | 8'4" |
| INTERIOR LENGTH | 11'9" | 13'9" | 15'9" | 15'9" | 19'9" |
| INTERIOR WIDTH | 6'9" | 6'9" | 6'9" | 6'9" | 6'9" |
| INTERIOR HEIGHT | 6'8" | 6'8" | 6'8" | 6'8" | 6'8" |
| PLATFORM HEIGHT | 19" | 19" | 19" | 21" | 21" |
| AXLE: QUANTITY | Tandem | Tandem | Tandem | Tandem | Tandem |
| AXLE: TYPE | 10-Degree Up | 10-Degree Up | 10-Degree Up | 10-Degree Up | 10-Degree Up |
| BRAKES | 4-Wheel Electric Drum | 4-Wheel Electric Drum | 4-Wheel Electric Drum | 4-Wheel Electric Drum | 4-Wheel Electric Drum |
| SUSPENSION | Torflex® | Torflex® | Torflex® | Torflex® | Torflex® |
| TIRE SIZE | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST225/75R15 | ST225/75R15 |
| LOAD RANGE | D | D | D | E | E |
| HITCH BALL SIZE | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" |
| HITCH TO TOP OF BALL | 17" to 21" | 17" to 21" | 17" to 21" | 17" to 21" | 17" to 21" |
| HITCH WEIGHT (LB.) | 10-15% | 10-15% | 10-15% | 10-15% | 10-15% |
| CURB WEIGHT (Approximate) | 2,115 lb. | 2,235 lb. | 2,355 lb. | 2,755 lb. | 2,995 lb. |
| GVWR | 7,000 lb. | 7,000 lb. | 7,000 lb. | 9,990 lb. | 9,990 lb. |
| PAYLOAD CAPACITY (Approximate) | 4,885 lb. | 4,765 lb. | 4,645 lb. | 7,235 lb. | 6,995 lb. |
| REAR DOOR STYLE (Choice) | Double Doors | Double Doors | Double Doors | Double Doors | Double Doors |
| DOOR: WIDTH | 76" | 76" | 76" | 76" | 76" |
| DOOR: HEIGHT | 69" | 69" | 69" | 69" | 69" |
| 12V TRAILER END CONNECTOR | 7-way | 7-way | 7-way | 7-way | 7-way |
.
Standard Features, Specifications and Available Options subject to change without notice.
Popular Options
20" Fold-Up Step
Aluminum Tread Plate Floor
ATP Wall Guard
Duplex Wall Receptacle(s)
E-Track
Gray/Black Rubber Coin Floor Covering
Overhead Cabinets
Roof Rack
Roof Vent with Exhaust Fan
Workbench
Standard Features, Specifications and Available Options subject to change without notice.
