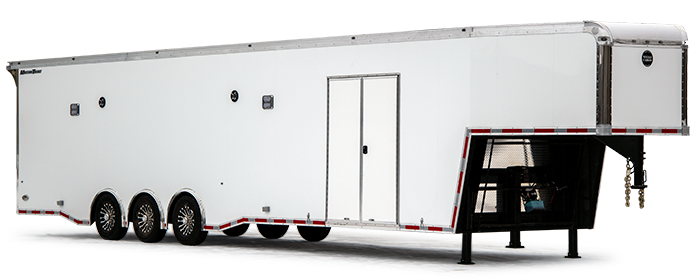

MotorTrac Gooseneck
PERFORMANCE THAT'S TRUE TO FORM!
The MotorTrac® Race Trailer from Wells Cargo® is all about delivering performance.
Performance on the road . . .
Performance at the track . . .
Performance year after year.
Successful racers are constantly searching for superior performance, it makes sense to use top-notch equipment like the flagship MotorTrac® Racing Trailer.
Features
1-Piece Aluminum Roof

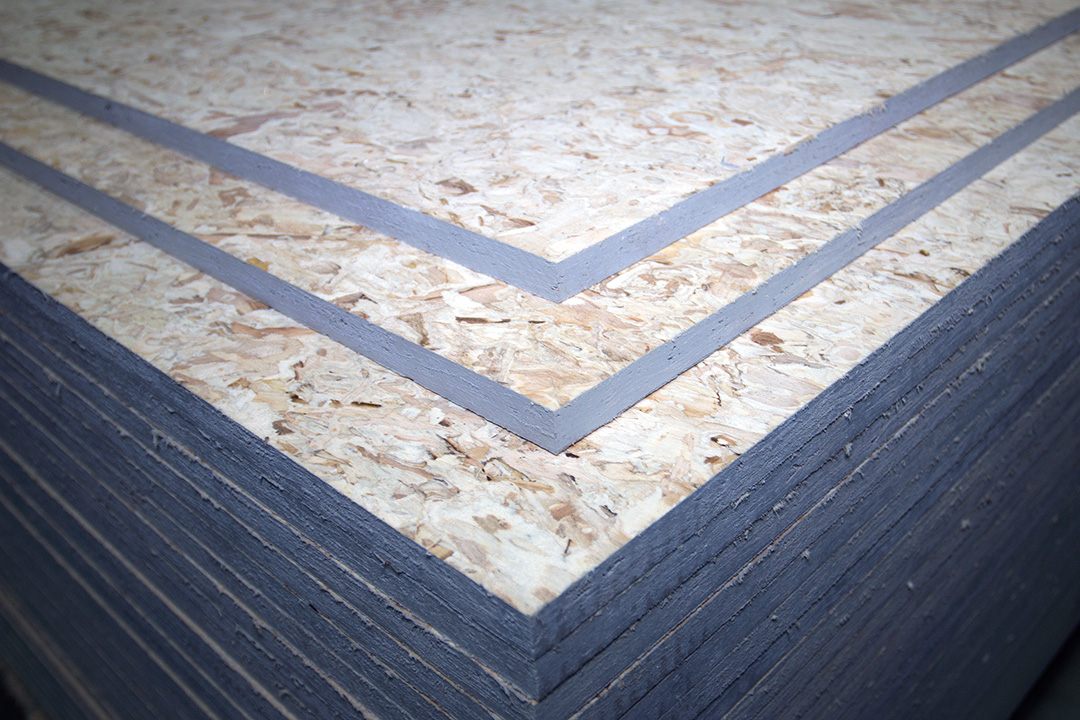

3/4" PlexCore Decking

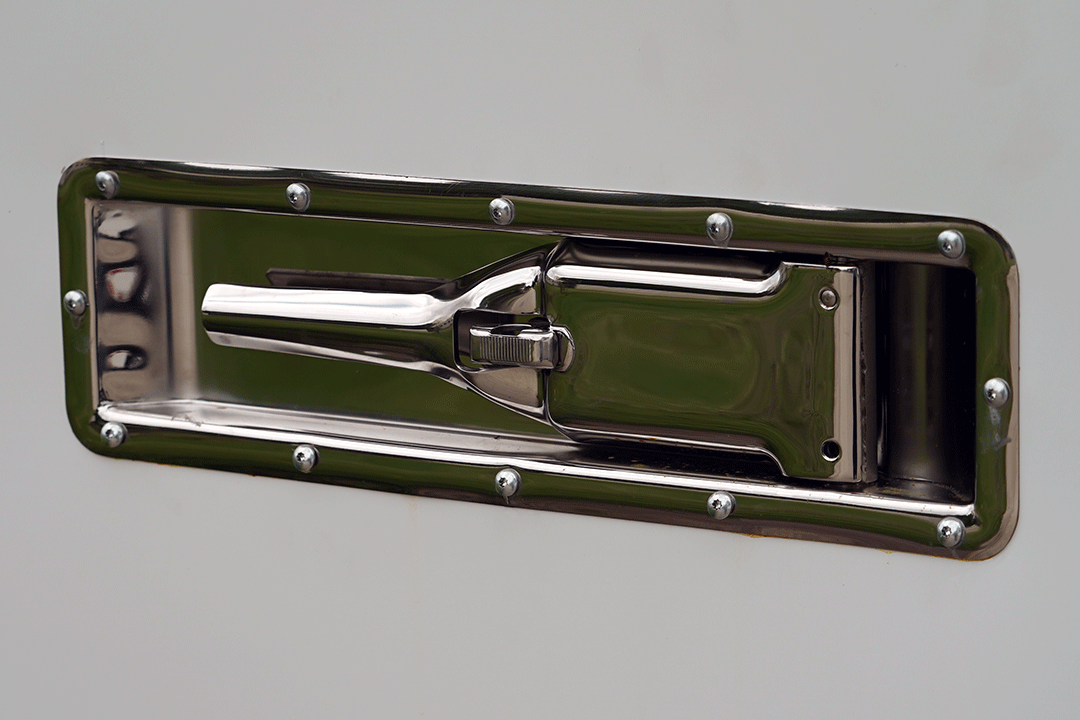

Paddle Latch Style Handles on Rear Ramp Door
- Stainless Steel Cap
- Ceiling Liner
- 5,000 lbs. Square D-Rings w/ Welded Plate (4)
- 14" x 14" Non-Powered Roof Vent (2)
- 12v LED Dome Light w/ Wall Switch (4)
- 12v LED Clear Lens Slim Line Tail Lights (2 Pair)
- 12v LED Clear Lens Exterior Clearance Lights

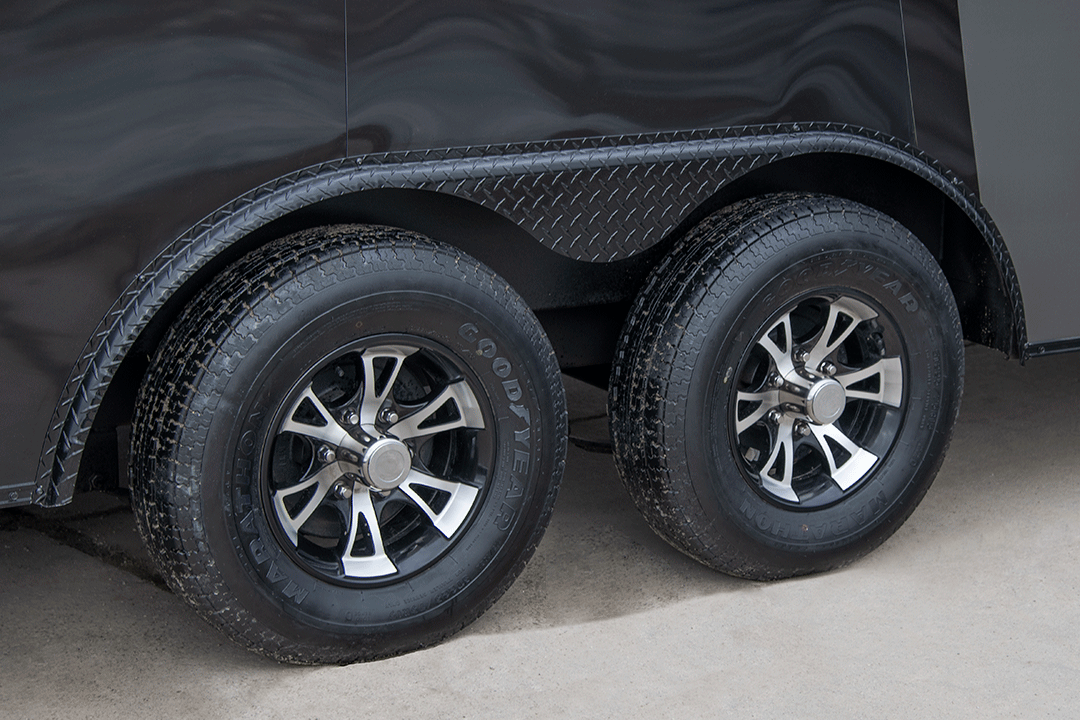

- Black SpitFire Aluminum Wheels
- Goodyear® Endurance Radial Tires
- Spread Axle Design w/ Drop Skirting
- 36" x 78" Side Entry Door w/ Recessed Step
- Cast Aluminum Corners (Front & Rear)
- Rear Ramp Door with Spring Assist
- 16" OC Tube Roof Structure
- 16" OC Tube Vertical Posts
- 16" PlexCore Ramp Extension
- Electric Brakes with Breakaway Kit
- ArmorTech on A-Frame and Rear End Rail
- 16" OC Crossmembers

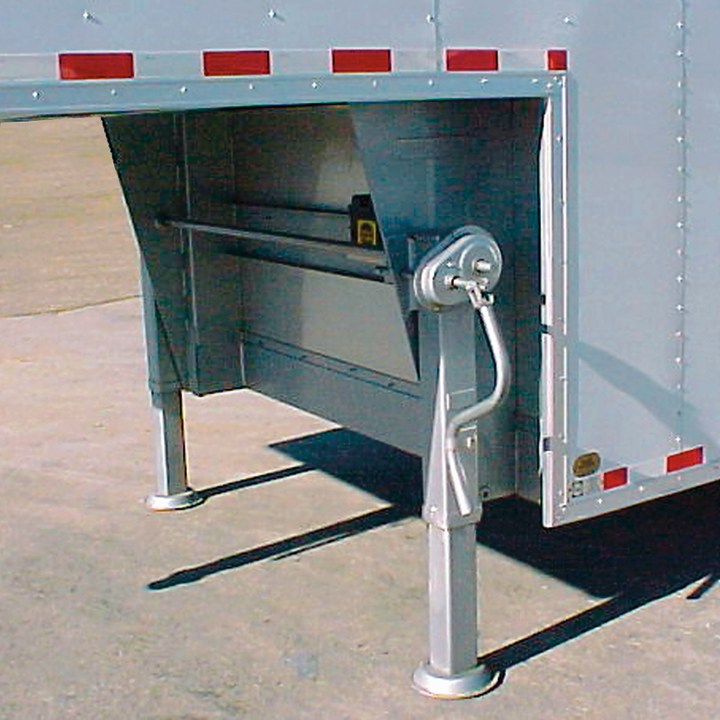

- Tandem 2-Speed Landing Gear
- Reinforced No Show Beavertail
- 3-Year Limited Warranty
- Polished Aluminum Rear Corners & Rear Header
- 3/8" PlexCore High-Performance Interior Sidewalls

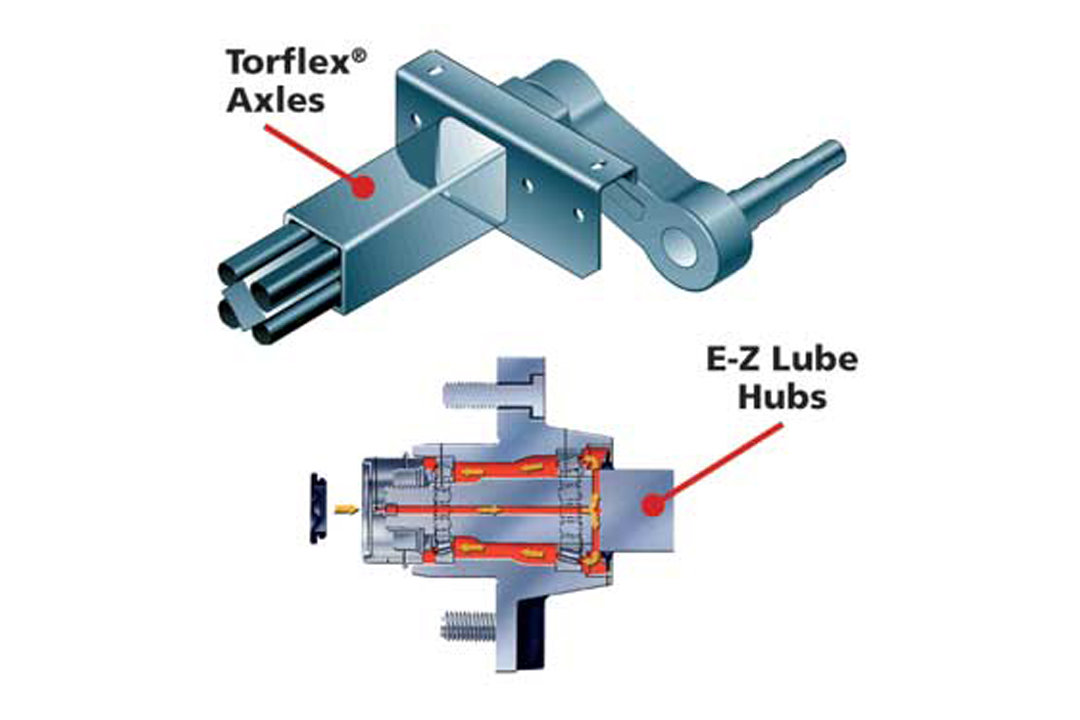

- Torflex Rubber Torsion Axles with E-Z Lube Hubs
- Bonded .080 ACP Exterior (Aluminum Composite Panels)
Standard Features, Specifications and Available Options subject to change without notice.
Gallery
Specifications
| MODEL | MTG8524T4 | MTG8528T4 | MTG8532T4 | MT8536T4 | MT8540T4 | MT8544R4 |
| BODY LENGTH | 24'0" | 28'0" | 32'0" | 36'0" | 40'0" | 44'0" |
| BODY WIDTH | 8'4" | 8'4" | 8'4" | 8'4" | 8'4" | 8'4" |
| OVERALL LENGTH | 24'0" | 28'0" | 32'0" | 36'0" | 40'0" | 44'0" |
| OVERALL WIDTH | 8'6" | 8'6" | 8'6" | 8'6" | 8'6" | 8'6" |
| OVERALL HEIGHT | 9'3" | 9'3" | 9'3" | 9'3" | 9'3" | 9'3" |
| INTERIOR LENGTH (Main Deck) | 15'9" | 19'9" | 23'9" | 27'9" | 31'9" | 35'9" |
| UPPER DECK | 8'0" | 8'0" | 8'0" | 8'0" | 8'0" | 8'0" |
| INTERIOR WIDTH | 8'0" | 8'0" | 8'0" | 8'0" | 8'0" | 8'0" |
| INTERIOR HEIGHT | 6'10" | 6'10" | 6'10" | 6'10" | 6'10" | 6'10" |
| WIDTH BETWEEN WHEEL BOXES | 83" | 83" | 83" | 83" | 83" | 83" |
| HEIGHT OF WHEEL BOX FROM FLOOR | 10" | 10" | 10" | 10" | 10" | 10" |
| PLATFORM HEIGHT AT BEAVERTAIL | 22" | 22" | 22" | 22" | 22" | 22" |
| TORFLEX® SUSPENSION E-Z LUBE® AXLES: QTY | Tandem | Tandem | Tandem | Tandem | Tandem | Triple |
| BRAKES WITH BREAKAWAY KIT | Electric Drum | Electric Drum | Electric Drum | Electric Drum | Electric Drum | Electric Drum |
| RADIAL TIRE SIZE | ST235/80R16 | ST235/80R16 | ST235/80R16 | ST235/80R16 | ST235/80R16 | ST235/80R16 |
| TIRE LOAD RANGE | E | E | E | E | E | E |
| HITCH BALL SIZE | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" |
| HITCH HEIGHT TO TOP OF BALL | 34" to 42" | 34" to 42" | 34" to 42" | 34" to 42" | 34" to 42" | 34" to 42" |
| DECK CLEARANCE (Ground to Botton of Deck) | 66" | 66" | 66" | 66" | 66" | 66" |
| HITCH WEIGHT (% OF CURB WEIGHT) | Approx. 25% | Approx. 25% | Approx. 25% | Approx. 25% | Approx. 25% | Approx. 25% |
| GVWR | 12,000 lbs. | 12,000 lbs. | 12,000 lbs. | 12,000 lbs. | 12,000 lbs. | 18,000 lbs. |
| REAR RAMP DOOR OPENING - W X H | 96" x 78" | 96" x 78" | 96" x 78" | 96" x 78" | 96" x 78" | 96" x 78" |
| 12v MALE CONNECTION | 7-Way | 7-Way | 7-Way | 7-Way | 7-Way | 7-Way |
| TUBE MAIN RAILS | 3" x 8" | 3" x 8" | 3" x 8" | 3" x 8" | 3" x 8" | 3" x 8" |
| BEAVERTAIL | 32" | 48" | 48" | 72" | 72" | 72" |
.
Standard Features, Specifications and Available Options subject to change without notice.
Popular Options
Access Doors
Roof Vent with Exhaust Fan
Goodyear Radial Tires with Black Aluminum Wheels
Multi-Color Exterior
5.2mm White Vinyl Sidewall Liner
ATP Floor Covering
Checkerboard Vinyl Floor Covering
RTP Floor Covering
Roof Vent Cover
Aluminum Helmet Cabinets
Roof Mount A/C
Roll-Out Style Awning
Halogen Backup Light
Exterior Halogen Lights
E-Track
ATP Floor Runners
Cable Hatch - Wall Mounted
Standard Features, Specifications and Available Options subject to change without notice.
