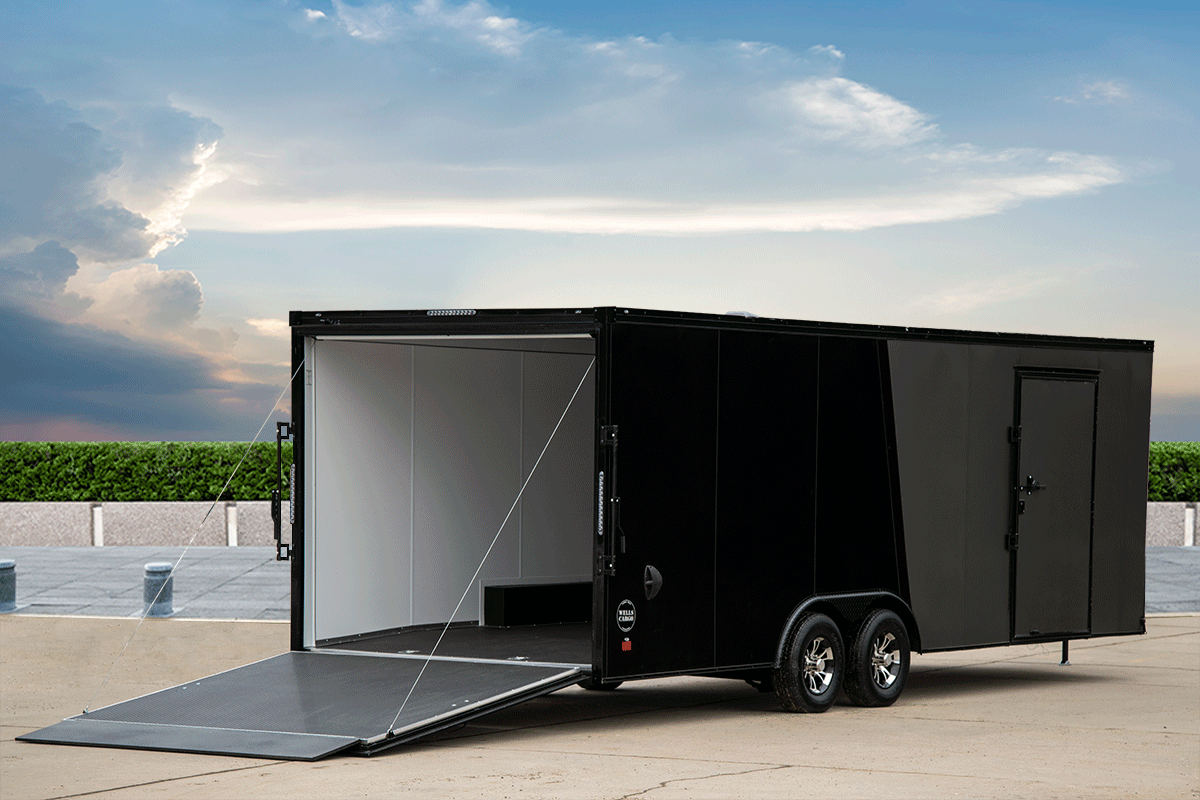

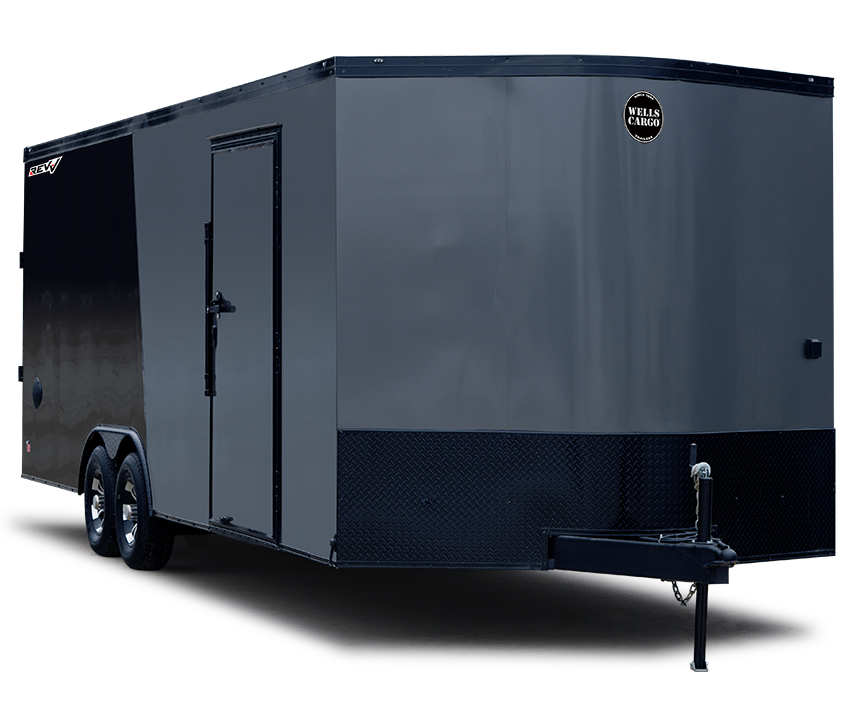

THE REVV - PRE-PACKAGED RACE CAR HAULER
Wells Cargo® is excited to launch the newest addition to our race trailer lineup — the REVV. The REVV is a Wells Cargo® is excited to launch the newest addition to our race trailer lineup — the REVV. The REVV is a pre-packaged trailer. That means you get all the features and options on your "must-have" list as standard equipment. Not only does the REVV look great, but it was built with performance in mind. Inside and out, the REVV is a force that demands attention and delivers on all fronts.
Features
Black SpitFire Aluminum Wheels

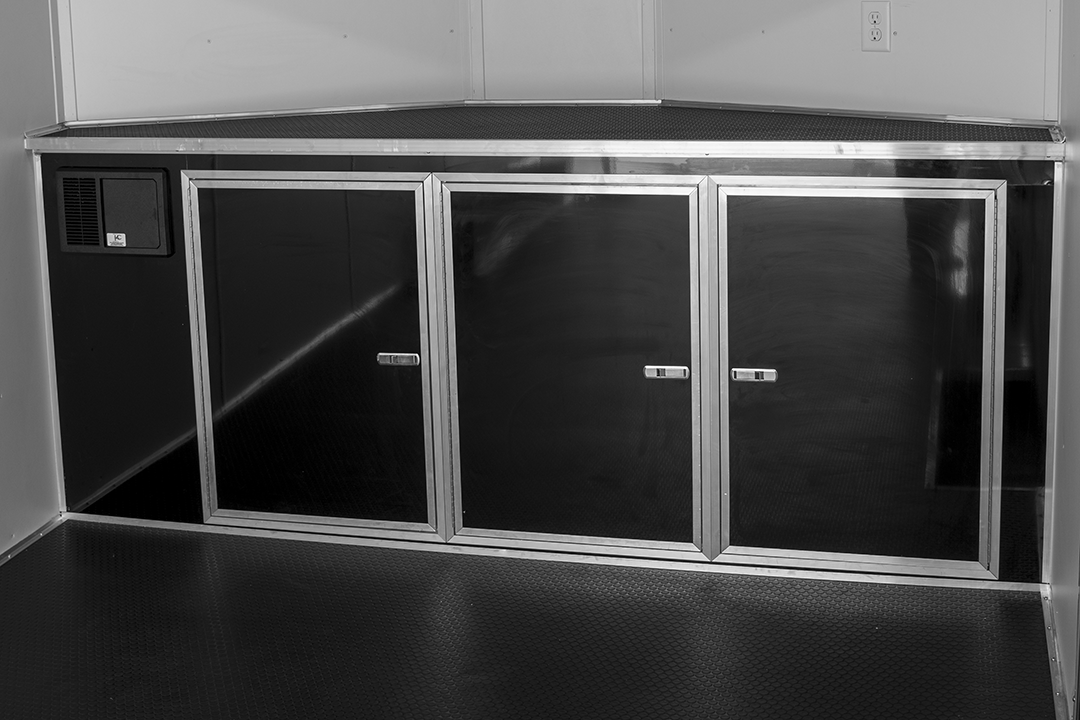

Base Cabinet (REVV)

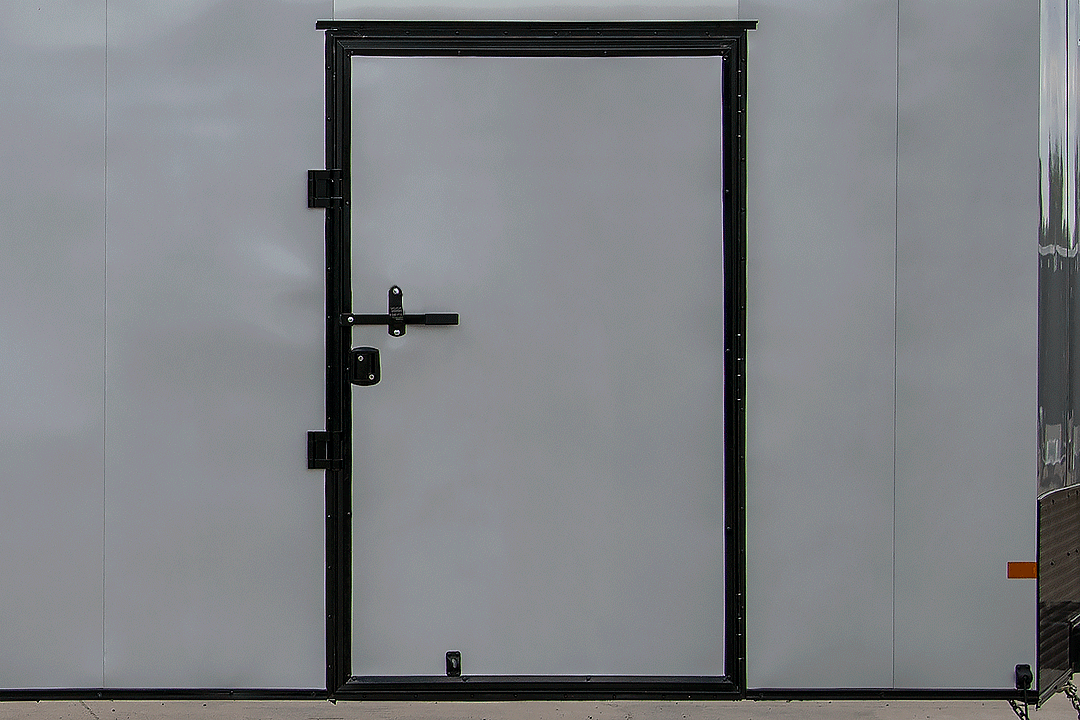

48” Side Entry Door with Flush Lock & Recessed Step

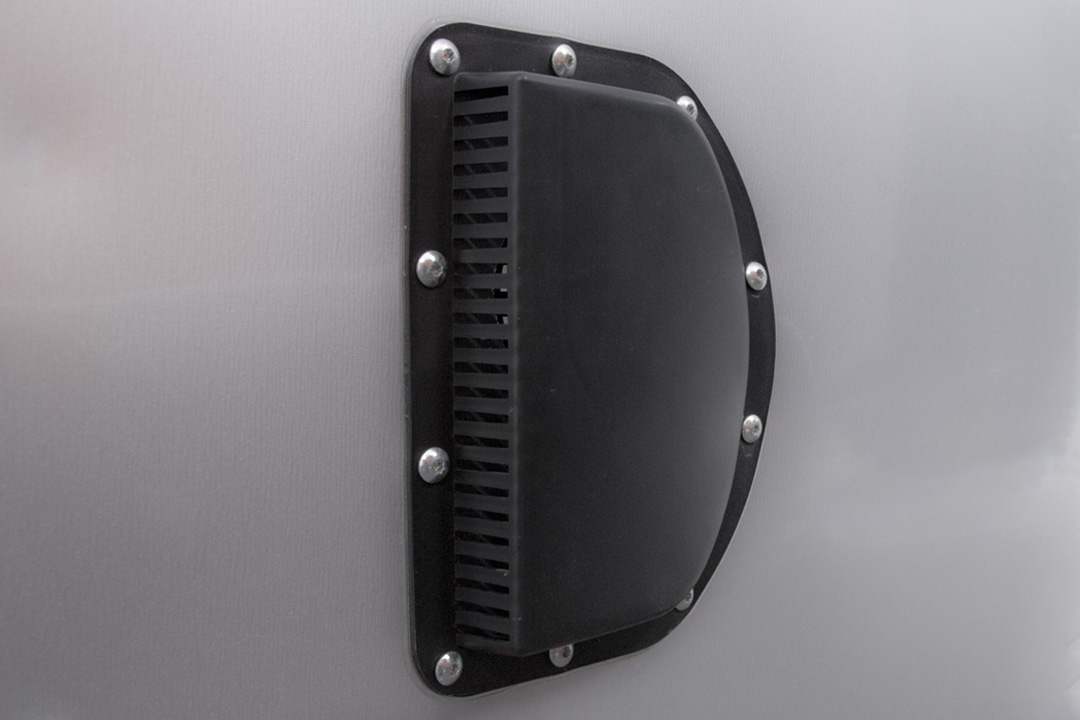

- Sidewall Vents
- 12v LED 14” Ceiling Lights (4)
- Straight Base Cabinet with Black Coin Countertop
- 30 Amp AC/DC Power Distribution Panel with Converter
- 120v 30A Power Cord/Plug - 25’
- 120v 30A Motorbase with Twist Lock Connect
- 16” ArmorTech Covered Ramp Extension
- 48” Side Entry Door with Flush Lock & Recessed Step
- 12" Extended A-Frame with Center Tube

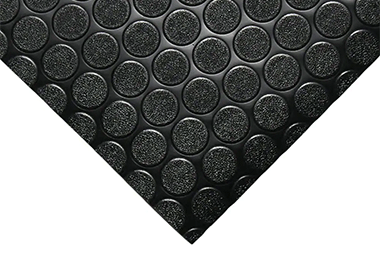

- Black Coin Flooring & Ramp Deck
- 9mm White Vinyl Sidewall Liner
- 5,000 lbs. Square D-Rings w/ Welded Plate (4)
- 16" OC Tube Roof Bows
- 24" ATP Stoneguard
- 16" OC Tube Vertical Posts
- 12v LED Slim Line Tail Lights
- ArmorTech on A-Frame and Rear End Rail

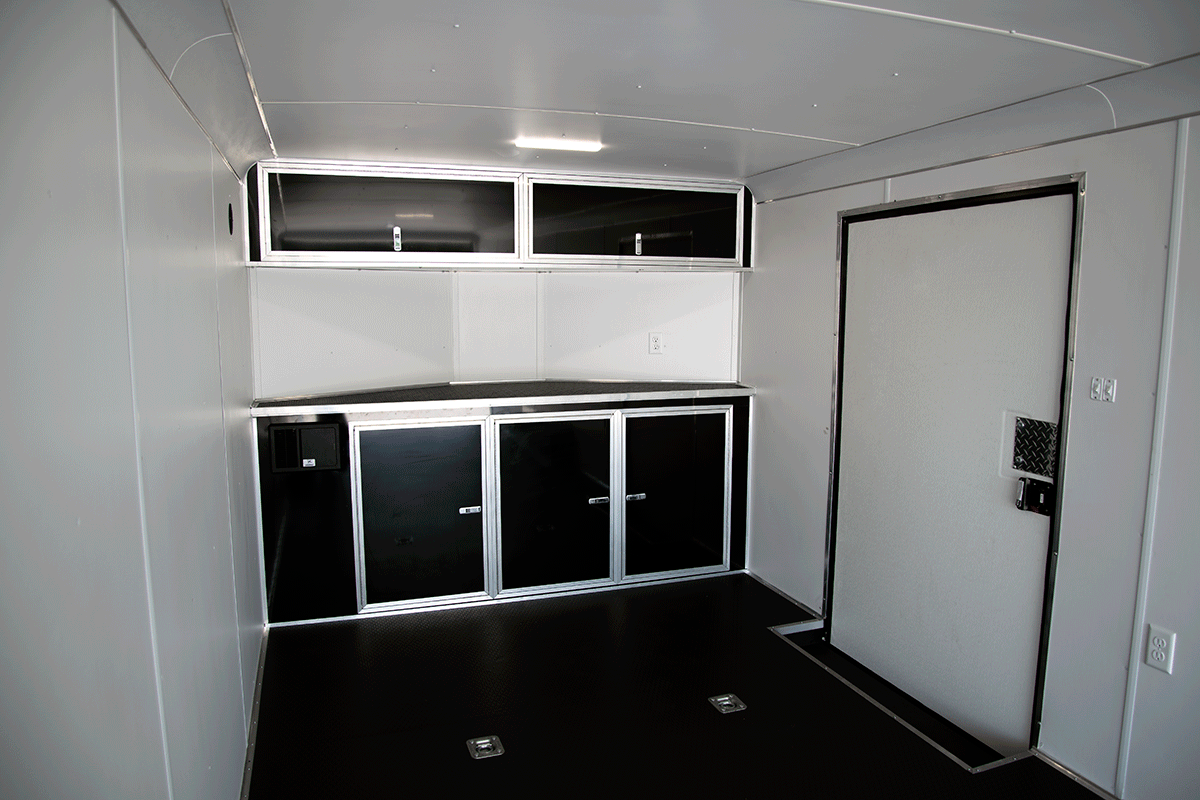

- Overhead Cabinets
- Bar Lock Assembly for Added Security
- 16" OC Crossmembers
- White Vinyl Ceiling Liner
- 120V Interior Duplex Wall Receptacles
- 3-Year Limited Warranty
- Polished Aluminum Rear Corners & Rear Header
- 15" Radial Tires
- Bonded .080 ACP Exterior (Aluminum Composite Panels)
Standard Features, Specifications and Available Options subject to change without notice.
Gallery
Specifications
| MODEL | REVV8520T3 | REVV8524T3 |
| BODY LENGTH | 22'0" | 26'0" |
| BODY WIDTH | 8'4" | 8'4" |
| OVERALL LENGTH | 25'0" | 29'0" |
| OVERALL WIDTH | 8'6" | 8'6" |
| OVERALL HEIGHT | 9'2" | 9'2" |
| INTERIOR LENGTH (INCLUDES "V) | 21'6" | 25'6" |
| INTERIOR WIDTH | 8'1" | 8'1" |
| INTERIOR HEIGHT | 7'0" | 7'0" |
| WIDTH BETWEEN WHEEL BOXES | 83" | 83" |
| PLATFORM HEIGHT | 18" | 18' |
| AXLE QUANTITY | Tandem | Tandem |
| BRAKES WITH BREAKAWAY KIT | Electric Drum | Electric Drum |
| RADIAL TIRE SIZE | ST225/75R15 | ST225/75R15 |
| TIRE LOAD RANGE | D | D |
| HITCH BALL SIZE | 2-5/16" | 2-5/16" |
| HITCH HEIGHT TO TOP OF BALL | 21" | 21" |
| HITCH WEIGHT (% OF CURB WEIGHT) | 10% to 15% | 10% to 15% |
| CURB WEIGHT (APPROXIMATE) | 3,650 lbs. | 4,480 lbs. |
| GVWR | 9,990 lbs. | 9,990 lbs. |
| PAYLOAD CAPACITY (APPROXIMATE) | 6,340 lbs. | 5,510 lbs. |
| REAR RAMP DOOR OPENING (W x H) | 94" x 80" | 94" x 80" |
| 12v MALE CONNECTION | 7-Way | 7-Way |
| BEAVERTAIL | 48" | 48" |
.
Standard Features, Specifications and Available Options subject to change without notice.
Popular Options
12v Surface Mount LED Scene Light
